一、Product Overview

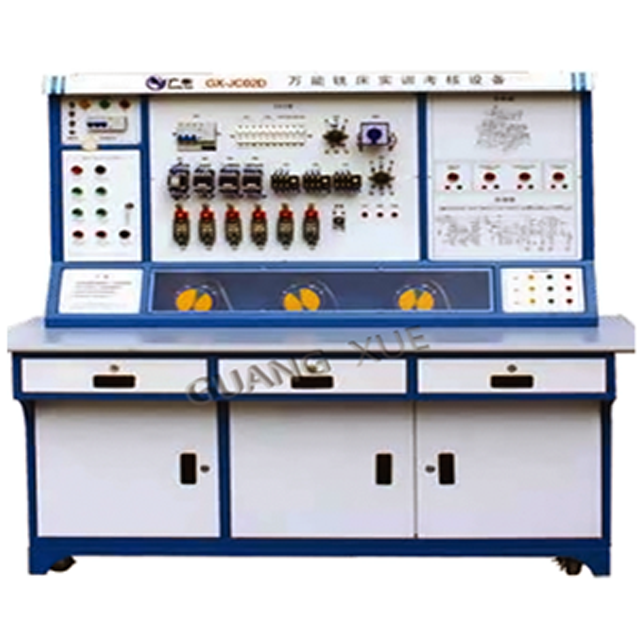

GX-JC02D X62W Machine Tool Circuit Training and Assessment Equipment "is a training and assessment equipment developed for the teaching and assessment of electrical control content in electrical, automation and related majors, social electrician training, and maintenance electrician appraisal institutes (stations) in various counties and cities in various universities, vocational schools, and vocational schools. Can be used for classroom demonstrations, machine tool electrical control principle operations, and experimental internships. Due to the use of actual electrical appliances, the equipment can be used as an internship equipment for machine tool electrical maintenance in social electrician vocational training, and also as a selected equipment for vocational qualification training and assessment. Improve students' hands-on abilities and overcome the weaknesses of being able to only teach on actual equipment, high costs, and difficulty in achieving teaching objectives in the past. At the same time, it provides effective equipment for high-level maintenance skill training, achieving the goal of low cost and significant teaching effectiveness. This device is suitable for simulating the electrical control of the X62W universal milling machine and assessing the skills for troubleshooting the electrical faults of the X62W universal milling machine.
二、Technical Parameter
1)Input power supply: three-phase four wire (~380V ± 10% 50Hz)；
2)Working environment: temperature -10 ℃~+40 ℃, relative humidity<85% (25 ℃), altitude<4000m；
3)Device capacity: ＜ 1KVA；
Boundary dimension: 1410mm × 725mm × 1535mm。
三、Practical training projects
1.Students are familiar with the mechanisms and principles of commonly used low-voltage electrical appliances;
2.In the electrical principle graphical model mode, students can find out the fault point on a certain line through measurement with the aid of principle analysis;
3.Improve students' hands-on skills and operational levels;
4.Complete the troubleshooting of common milling machine faults by troubleshooting the milling machine;
5.Fault points can be set as a skill assessment platform for maintenance electricians;
6.Fault Setpoint.
