一、Product Overview

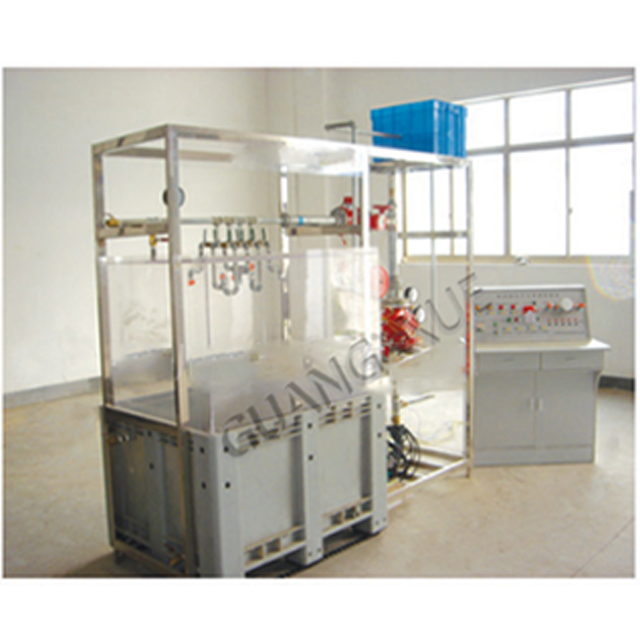

This device is designed according to the relevant standards of the "Design Specification for Automatic Sprinkler Fire Extinguishing Systems". The entire system consists of a fire extinguishing control cabinet, a sprinkler fire extinguishing system model, and upper computer monitoring software. The fire extinguishing control cabinet includes resources such as fire extinguishing controller, power indicator, status indicator light, sound and light alarm, manual control device, and linkage control interface; The model framework of the sprinkler system and the main components such as the water tank are all made of stainless steel components. They are composed of typical sprinkler equipment such as sprinkler pumps, pressure tanks, wet alarm buttons, hydraulic alarm bells, delay devices, pressure switches, water flow indicators, enclosed nozzles, test valves, fire detectors, fire alarms, etc., which can vividly simulate the typical structure of the water extinguishing system in the building; By providing configuration software, students can design their own monitoring interface to achieve comprehensive monitoring of the firefighting process. The device can complete demonstration training projects such as fire detection, fire alarm, and on-site fire extinguishing. At the same time, it can clearly demonstrate the typical equipment composition and system working principle of the sprinkler fire extinguishing system. Through the operation training of the device, students can become familiar with the control principle and working process of the fire extinguishing system. Suitable for practical teaching of professional course control sprinkler fire extinguishing system training and assessment equipment such as "Building Fire Extinguishing System", "Building Water Supply and Drainage System", and "Building Fire Control System".
二、Technical Parameter
1)Input power supply: three-phase four wire~380V 50Hz；
2)Environmental temperature:+4 ℃~+45 ℃；
3)Device capacity:<4kVA；
4)Safety protection: Equipped with automatic leakage protection device。
三、Practical training projects
1.Understanding of System Structure and Equipment
2.Installation and use of simulation software for sprinkler fire extinguishing systems
3.Emergency operation of sprinkler fire extinguishing system
4.Sprinkler fire extinguishing system debugging
5.Fire detection and alarm
6.Sprinkler fire extinguishing operation
7.Installation and use of sprinkler fire extinguishing monitoring software
8.Comprehensive operation training for sprinkler system system
9.Linkage between sprinkler system and fire alarm system (optional)
