一、 Product Overview
The display cabinet of "Tolerance Fit" is an important technical requirement in the design drawings of mechanical parts, which is an important component of the static and dynamic geometric accuracy of mechanical products. With the development of science and technology and the improvement of production level, higher and higher requirements have been put forward for the geometric accuracy of mechanical products. Geometric accuracy has become an independent technical discipline and has been highly valued by scholars and engineering technicians.
二、Technical parameters

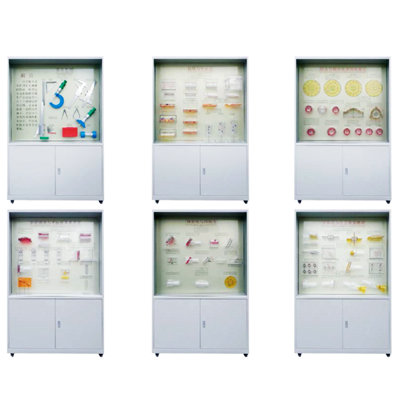

1) This display cabinet is composed of six individual display cabinets, with an overall size of 1200 × 400 × 1900mm long × wide × High);
2) The cabinet body is welded with SPCC cold rolled plates, and the surface is made of medium temperature phosphating spray plastic, resulting in good rigidity of the cabinet body. The display panel inside the cabinet is an ultra luxurious aluminum plastic sandwich panel with good load-bearing capacity. The board surface is accompanied by necessary charts and textual explanations, with a beautiful and elegant appearance and durability;
3) The back of the cabinet is equipped with a facing door, which is beneficial for maintaining equipment and facilitating maintenance;
4) The lower part of the cabinet is equipped with a cabinet for convenient storage of individual models, experimental boxes, and related experimental documents;
5) The bottom of the cabinet is equipped with a universal wheel, which is easy to move and meets the requirements of ergonomics;
6) The model material is made of physical objects, acrylic organic boards, and engineering plastics.
