一、Product Overview

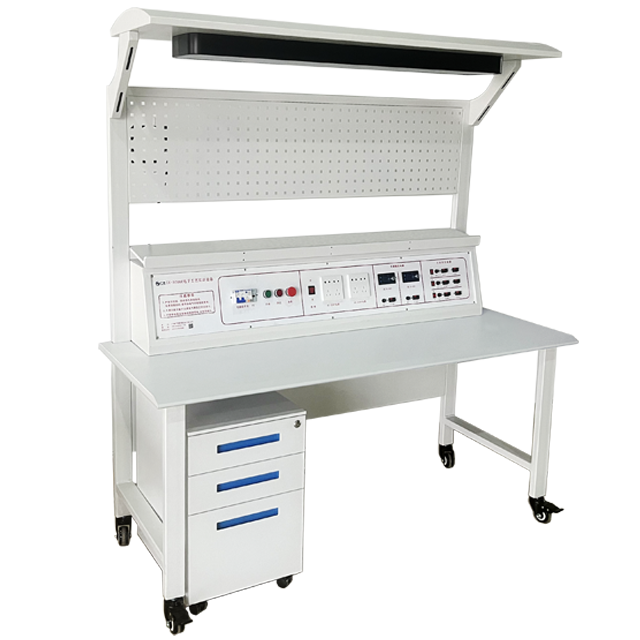

The GX-DZ06C equipment is suitable for the experimental and practical training requirements of vocational colleges and senior technicians. Applicable majors include courses such as
二、Technical Parameter
1)Working power supply: single-phase three wire 220V ± 5% 50HZ；
2)Safety protection: leakage protection, overcurrent protection；
3)Rated power: ≤ 1KW；
4)Environmental temperature: -10~50 ℃；
5)Relative temperature: ≤ 85%；
6)Boundary dimension: L1648mm × W748mm × H1550mm。
三、Practical training projects
1.Use of commonly used instruments and meters
2.Identification and detection of commonly used electronic components
3.Disassembly and assembly of electric soldering iron and training of electronic soldering skills
4.Production of printed circuit boards
5.The production of a three terminal integrated regulated DC power supply
6.The production of series type DC regulated power supply
7.Assembly and Testing of Low Frequency Signal Voltage Amplifiers
8.The fabrication and testing of amplifier circuits with negative feedback signals
9.Welding and Debugging of Wenshi Bridge Oscillator
10.Production and Testing of Battery Voltage Monitoring Circuit
11.The Manufacturing of Electronic Hypnosis Circuit
12.Practical training on the production of simulated "cicada" electronic circuits
13.Production and practical training of practical voice and light controlled energy-saving lighting lamps
14.Production and Training of Voice Alarm Horn
15.The production and testing of a logic tester
16.Production and testing of positive and negative pulse signals
17.The production of a quiz answering machine
18.The production of water level alarm circuit
19.The production of mini flash colored lights
20.Light controlled music doorbell
21.The Production of a Practical Simulated Natural Wind Controller
22.Table lamp dimming circuit
23.Practical CMOS touch lock key circuit
