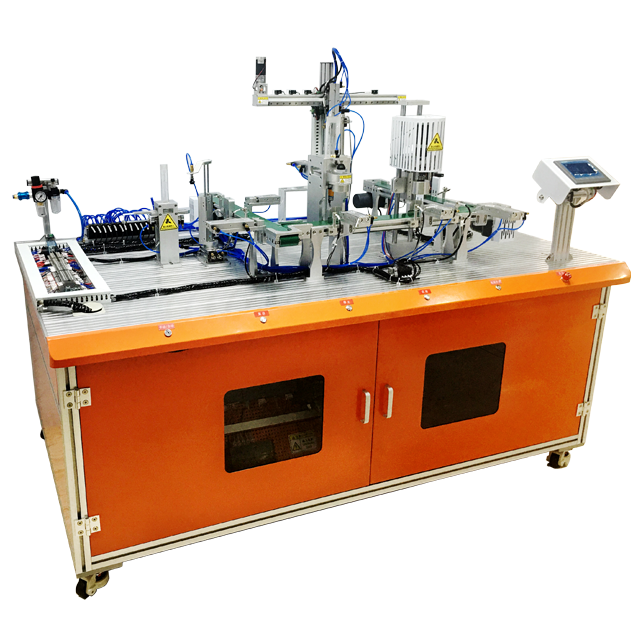

一、Product Overview

The equipment adopts a modular structure combination application design concept, integrating machinery, electricity, and gas, fully reflecting the teaching and training of professional skills such as mechanical assembly and adjustment, electrical wiring, software programming, debugging and maintenance. Suitable for teaching, practical training appraisal, and skill competitions of professional courses such as maintenance electricians, mechatronics integration, industrial automation, and programmable control system designers in various technical and vocational colleges.

二、Technical parameters

1) Working power supply: three-phase five wire 380V ± 5% 50HZ;

2) Safety protection: leakage protection, overcurrent protection, fuse protection;

3) Boundary dimension: 3100 mm × 1100 mm × 1200 mm；

4) Rated power: 2KW;

5) Environmental temperature: -10 ℃~50 ℃;

6) Relative temperature: ≤ 85%.

三、 Practical training projects

PLC Extension Training

1. Reading and processing of temperature values

2. Reading and processing of liquid pressure

3. Reading and processing of traffic

4. Reading and processing of liquid level values

Practical training of human-machine interface system

1. Window switching

2. Interface production

3. Data input

4. PLC register connection

5. Flowing Text

Touch screen monitoring transmission belt training

1. Touch screen monitoring of various work unit equipment

2. Practical training on touch screen monitoring of three-dimensional storage system

3. Touch screen monitoring and management of the overall training process

4. Set the entire system parameters through the touch screen

5. Touch screen query and processing of system alarm codes

6. Practical training on multi-level permission settings for touch screens

7. Touch screen for fault setting, diagnosis and troubleshooting

Practical training of frequency converter system

1. Basic wiring operation of frequency converter

2. Open loop system training

3. PU operation and external operation

4. Speed positioning system training

5. Practical training on parallel operation and operation

6. Communication Operation Training

7. Multi speed operation training

8. Training on Stepless Speed Control of Frequency Converters

9. Instantaneous power outage starting training

10. Panel Parameter Copying Training

11. Multi position positioning parameter adjustment

AC servo system practical training

1. Basic wiring operation of AC servo system

2. Amplifier parameter settings

3. Feedback and pulse count observation

4. Pulse input control forward and reverse

5. Cam control increment method

6. Familiarity and troubleshooting of fault codes

Practical Training on Sensors

1. Practical Training on the Application of Metal Sensors

2. Training on Color Sensor for Single Color Sorting

3. Training on Color Sensors for Sorting Other Colors

4. Position Sensor Training

5. Hall Sensor Training

6. Magnetic Switch Training

7. Application of Encoder

8. Encoder absolute control and incremental control

9. Application of Opposing and Reflective Sensors
