一、 Product Overview

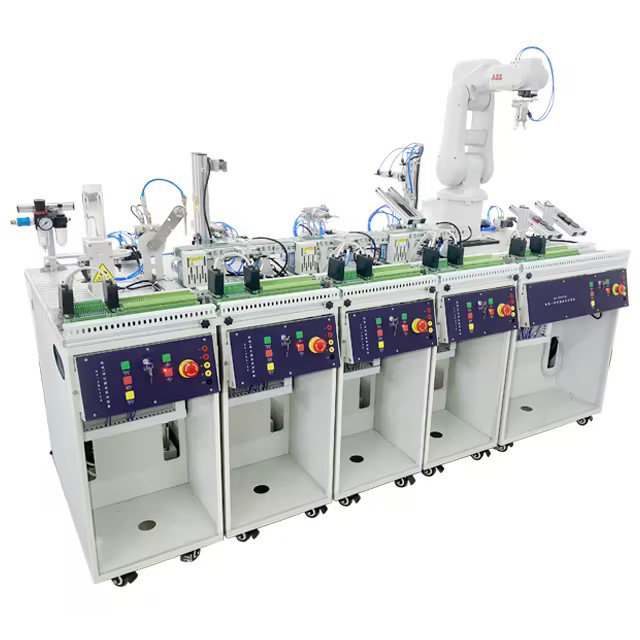

The GX-ZDH13G-01 mechatronics integrated comprehensive training system (World Skills Competition Training Platform MPS) training equipment adopts a modular and open design structure, which can be used not only as an independent system, but also as a subsystem combined with other similar equipment to form an automated production line system. It has the advantages of arbitrary combination of functions and scalability; The PLC control board of the training equipment is detachable, and the training platform can be used as a combination of mechatronics integration training and the combination of new unknown functional modules can be added at any time. The professional evaluation content of practical training equipment is aligned with the equipment functions of the World Skills Competition. The working process and operating status of various pneumatic components, electrical components, and robotic arm actuators are intuitive.
二、 Technical parameters
1) Boundary dimension: approximately L2500mm × W800mm × H1500mm；
2) Working power supply: AC 220V ± 10% 50HZ;
3) Environmental temperature: -10~50 ℃;
4) Relative temperature: ≤ 85%;
5) Safety protection: leakage protection, overcurrent protection, short circuit protection;
6) Overall weight: approximately 170kg.
三、Practical training projects
1. Application of PLC basic instructions
2. Using programming software to program PLC
3. PLC control of frequency converter
4. PLC controlled conveyor belt
5. PLC detects multiple material properties
6. Pulse positioning control of PLC on transmission belt
7. PLC's hybrid positioning control for conveyor belts
8. Basic Action Control of PLC for Dual Axis Stacker
9. PLC automatic control of multi-axis industrial robots
10. PLC control assembly unit
11. PLC for single and dual axis control of stacker crane
12. PLC automatic control of warehouse outbound and inbound operations
13. Reading and processing of temperature values
14. Reading and processing of liquid pressure
15. Reading and processing of traffic
16. Touch screen monitoring and management of the overall training process
17. Set the entire system parameters through the touch screen
18. Touch screen query and processing of system alarm codes
19. Practical training on multi-level permission settings for touch screens
20. Basic wiring operation of frequency converter
21. PU operation and external operation
22. Speed positioning system training
23. Practical training on parallel operation and operation
24. Communication Operation Training
25. Multi speed operation training
26. Inverter Stepless Speed Regulation Training
27. Instantaneous power outage starting training
28. Panel Parameter Copying Training
29. Multi position positioning parameter adjustment
30. Stepping system wiring operation
31. Robot Origin and Reset
32. Single step and continuous control of robots
33. Multi fine division and pulse training
34. Network IO monitoring robot working status
35. AC servo system training
36. Basic wiring operation of AC servo system
37. Amplifier parameter settings
38. Feedback and Pulse Number Observation
39. Pulse input control forward and reverse
40. Pulse control forward and reverse with speed feedback
41. Relative position control
42. Cam control increment method
43. Familiarization and troubleshooting of fault codes
44. Dual axis warehouse control management
45. Practical Training on the Application of Metal Sensors
