一、Product Overview

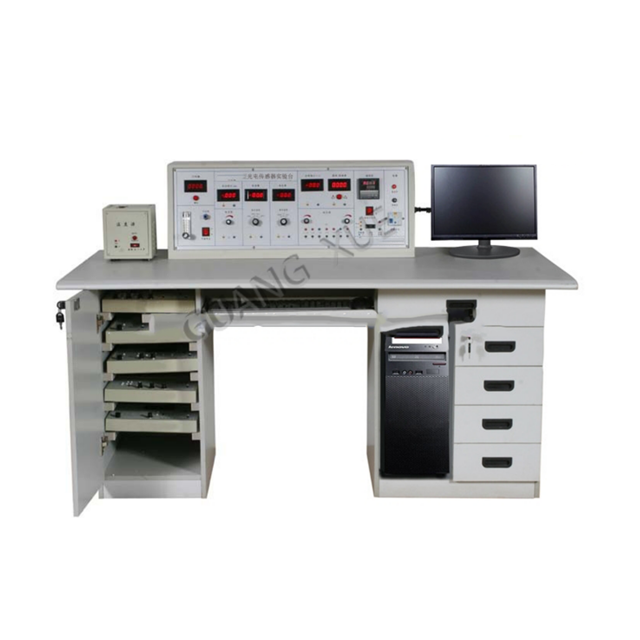

The equipment is developed and designed according to the course requirements of optoelectronics. The equipment adopts a modular structure. Each module corresponds to a corresponding sensor, and different modules can be selected according to needs. In addition to the common DC power supply, the equipment is also equipped with a variety of display instruments, especially the quantitative measurement instrument, Optical power meter, illuminometer, digital display microammeter, etc. required for photoelectric experiments.
二、Technical parameters
1) Input power supply: AC220V ± 5% (single-phase three wire) 50Hz;
2) Rated power: ≤ 1KW;
3) Vibration source: 1HZ-30HZ (adjustable);
4) Rotation source: 0-2400 rpm (adjustable);
5) Heating source: ＜ 150 ℃ (adjustable);
6) Environmental temperature: -10 ℃~40 ℃;
7) Relative humidity: ≤ 85%;
8) Boundary dimension: 1600 × eight hundred × 750 mm。.
三、Practical training projects
1. Optical power experiment
2. Illumination experiment
3. Light dispersion experiment
4. Monochromaticity experiment of laser
5. Dark current and bright current experiments of photosensitive devices
6. Dark resistance and bright resistance experiment of photoresistor
7. Spectral characteristic experiment of photoresistor
8. Light characteristic experiment of photoresistor
9. photoresistor volt ampere characteristic experiment
10. Experiment on P-I Characteristics of Light Emitting Diodes
11. Spectral characteristics experiment of photodiodes
12. Photosensitive diode illumination characteristics experiment
13. Spectral characteristics experiment of photosensitive transistor
14. Photosensitive transistor illumination characteristics experiment
15. Volt ampere characteristics experiment of photosensitive transistor
16. Optical Switch Experiment
17. Photocell spectral characteristics experiment
18. Photocell illumination characteristics experiment
19. Infrared reflective switch experiment
20. Principle experiment of infrared pyroelectric sensor
21. Application experiment of infrared pyroelectric detector
22. Pulse Light Modulation and Demodulation Experiment
23. Acousto optic modulation and demodulation experiment
24. PSD sensor experiment
25. Fiber optic displacement sensor experiment
26. Fiber optic temperature sensor experiment
27. Fiber optic pressure sensor experiment
28. Photoelectric speed sensor speed measurement
