一、Product Overview

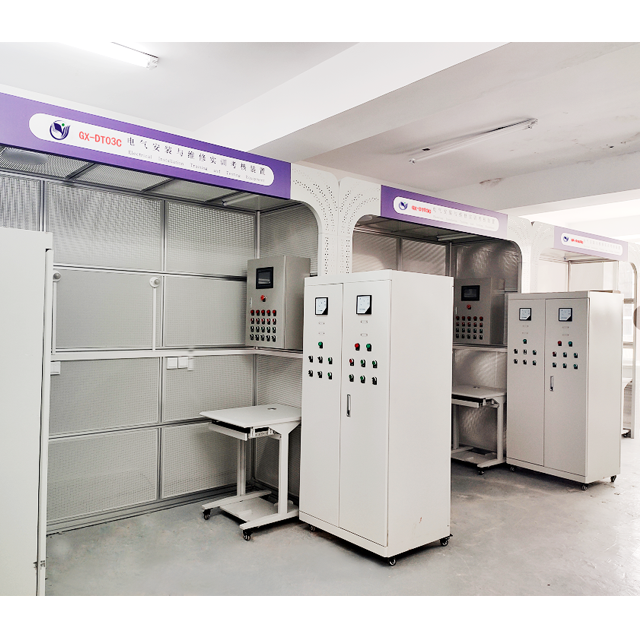

The GX-DT03C Electrical Installation and Maintenance Training and Assessment Device is a universal training platform developed based on the training and appraisal requirements of maintenance electricians and electrical installers for factory electrical installation and indoor electrical installation. It is very suitable for various vocational colleges and technical schools to use as a public platform for maintenance electricians, electrical installers, and other majors with electrical installation layout requirements.
二、Technical Parameter
1) Working power supply: three-phase five wire power supply AC 380 V/220 V ± 7.5% 50 Hz；
2) Working environment: using insulated flooring (or using insulated carpets)；
3) Main mesh plate size of the training device: length (mm) × Width (mm)=798 × 768；
4) External dimensions of the training device: see the configuration list;
5) Training device material: steel plate. Steel plate thickness ≥ 1.5mm;
6) Maximum power consumption ≤ 1.5KW；
7) Safety protection measures: Equipped with grounding protection, overcurrent, overload, and leakage protection functions, in accordance with relevant national standards。
三、Practical training projects
1.Construction training for wiring in trunking
2.Concealed engineering construction training
3.Installation of isolation switch
4.Practical Training on Wiring of Distribution Lines
5.Practical Training on Combination and Installation of Metal Bridge
6.Practical Training on the Laying of Plastic Trunking
7.Installation of electrical control box
8.Electrical Control Circuit Installation Training
9.Control circuit connection for direct starting and stopping of three-phase asynchronous motors
10.Connection of forward and reverse control circuits for three-phase AC asynchronous motors with contactor interlocking
11.Connection of forward and reverse control circuits for three-phase AC asynchronous motors with button interlocking
12.Connection of Y - △ (manual switching) starting control circuit for three-phase AC asynchronous motor
13.Connection of stator winding series resistance starting control circuit
14.Connection of energy consumption braking control circuit for three-phase AC asynchronous motor
15.Connection of Reverse Braking Control Circuit for Three Phase AC Asynchronous Motor
16.Connection of sequential control circuits for multiple (3 or less) motors
17.Connection of control circuits between two locations
18.Connection of the speed control circuit for a dual speed motor with button switching
19.Connection of reverse braking control circuit with centrifugal switch coordination
20.Practical Training on Functional Parameter Setting and Operation of Frequency Converter Panel
21.Frequency converter for motor inching control and start stop control
22.Multi stage control of motor speed
23.Power frequency and frequency conversion switching control
24.Open Loop Speed Control of Electric Motors Based on Analog Control
25.Motor open-loop speed control based on panel operation
26.Practical training on protection and alarm functions of frequency converters
27.PLC based open-loop speed regulation of frequency converter
28.PLC control motor sequential start
29.Y-△ starting circuit of three-phase asynchronous motor controlled by PLC
30.Parameter settings for touch screen
31.Programming of touch screen
32.Comprehensive training on touch screen, PLC, and frequency converter
